I don't post much here, but I skim the DIY quite often.
I collect and restore Metaframe style aquariums for myself and friends, and I recently missed an uber rare hex metaframe style tank on ebay. Got me thinking that I should just build one.

Instead of stainless, I used about 12 feet of 1/2 type M scrap copper pipe, and salvaged roofing sheet, which I had handy.


Link to cross eyed 3D shot (cross you eyes to view).
http://www.rickwrench.com/images-sou...x-3d-1400w.jpg

To get strips from copper pipe you anneal the pipe, split it lengthwise and flatten it. The strips never come out perfectly straight, so I went to work with the hammer, using extra ball end shots to straighten any curves out. The resulting edges were straight enough to clean up on the belt sander and split.
1/2" type M copper pipe gives you a strip just a bit shy of 2" wide, 028" thick. After clean up, it's about 1.75" wide.
I split that for the vertical legs on the tank, so about 7/8" wide.
Folds were made, mostly, on a cheap Harbor Freight bench brake. To connect everything, I soldered/sweated in most joints with silver bearing solder, and brazed a few of the critical joints.
Glass is cheap Home Depot sourced panes, cut at home and bedded in with black Dow Corning 795. DC-795 looks a lot like the tar/gilsonite used on old metaframe tanks after clean up.
Since the tank is copper (toxic to fish and snails) the DC-795 filled all joints between glass panes, no copper exposed to water.

The hood is made of salvaged roofing copper (16 oz.), and fitted with a DIY LED array (eighty four 5630 SMD's, 2 amps at 12v).



I had cast some zinc dragon-fish for legs for the tank, but they were somewhat out of scale for the tank. Too big. And they had some steam marks anyway as the molds had sat around for a while after burnout (so, back into the pot). The small fish finial on top works though.



I should have taken some "in process" shots... but I didn't.
All in, including the DIY light hood, about $30.00 in materials, and maybe 12-14 build hours spread out over several weeks. Eventually the verdigris/patina will even up, or I may just "age" it with ammonia and seal it.

Now, what to put in it.

Rick
rickwrench is offline   Reply With Quote

Advertisement [Remove Advertisement]
Old 11-16-2014, 07:31 AM   #2 (permalink)
Moderator

Michael's Avatar

Join Date: Jul 2010
Location: Dallas, Texas
Posts: 5,650
iTrader Ratings: 0
Michael is a regular member
Default Re: scrap copper tank

This is remarkable!

Your challenge in stocking this will be the shape and how to filter it. How large is the tank? I can see a very simple design of a clump of vallisneria or giant hairgrass in the middle or on one side you choose as the "back". Or maybe a nice tall piece of wood covered with epiphytes. . .
Michael is offline   Reply With Quote
Old 11-16-2014, 10:32 AM   #3 (permalink)
The Plant Whisperer

Zapins's Avatar

Join Date: Jul 2004
Location: South VA
Posts: 6,406
iTrader Ratings: 66
iTrader Positive Rating: 100%
Zapins is a valuable member of the community Zapins is a valuable member of the community
Default Re: scrap copper tank

That is a really nice job you did on the tank. I like the LED light combo with the antique looking tank.

Do you have any pictures of the other tanks you've worked on?

Also, you mentioned metal casting? I also do metal casting. Looks like you used a sand mold for the feet? Do you do lost wax as well? Any chance you could post some pictures of your furnace/foundry setup? Us casters are few and far between.

Have you seen the forum over at http://www.alloyavenue.com ? There are a lot of metal casting people over there with lots of interesting projects.
Zapins is offline   Reply With Quote

Old 11-16-2014, 09:39 PM   #4 (permalink)
Junior Member

Join Date: Mar 2008
Posts: 7
iTrader Ratings: 0
rickwrench is a regular member
Default Re: scrap copper tank

I've been considering a dense monoculture of vals. But stuffed absolutely full of anubias has crossed my mind, too.
For fish, probably elassoma species.

The zinc fish legs were lost wax process. What looks like coarse sand marks all over the base in the picture are actually steam marks. I'd done the burnout a few days previous (poor planning), and the molds picked up some moisture while sitting around. The top turned out fine. I use a pretty typical DIY propane furnace and a hot plate powered burnout oven. Nothing special.
rickwrench is offline   Reply With Quote
Old 11-18-2014, 09:25 AM   #5 (permalink)
Senior Member

Join Date: Jan 2014
Location: Mukwonago Wisconsin
Posts: 654
iTrader Ratings: 0
TropTrea is a regular member
Default Re: scrap copper tank

I loove that antique look of your tank. It would look fantastic with the correct room decor.

Reminds me of an tank I picked up when I was a teenager. It was at an estate sale and I got it for pocket change atr the time. The entire tank frame and bottom was mad of one piece of Cast Iron that was extremly decorative with dragons in in all four of the Edges. The top was open but had a rim roughly 2" wide and 3" tall with more ornate patterns of what were probably supposed to be Koi. I installed a Glass bottom as I did not water exposed to the iron for fear of excess iron toxicity. The base or stand was made of wood with similar carved patterns. The all the wood and iron work had an interesting finish that would be probably close to faux gold leaf with a brownish nearly black shadowing in the relief areas.

Outside dimension were roughly 32" long. 24" front to back, and 42" tall. But with the way it was constructed it only held about 35 gallons.

I considered it very impractical at the time as any water hitting the frame immediate produced water marks, and I could not come up with a great way to light the tanks. After about a year I traded it in for a brand new metal frame 55 gallon tank with lights and a stand.

Today I wish I still had it as it is probably worth many times what I got for it. It would also be a great conversation piece if I set it up with emerged plants rather than submerged plants and fish.
TropTrea is offline   Reply With Quote
Old 11-18-2014, 03:37 PM   #6 (permalink)
The Plant Whisperer

Zapins's Avatar

Join Date: Jul 2004
Location: South VA
Posts: 6,406
iTrader Ratings: 66
iTrader Positive Rating: 100%
Zapins is a valuable member of the community Zapins is a valuable member of the community
Default Re: scrap copper tank

rick, I'd love to see pictures of any of your other castings or your furnace setup. Lost wax metal casters are something of a rarity so when I get the chance to see a fellow caster's work and setup it makes for a good time

What coating did you use for the lost wax? Investment, ceramic shell, plaster of paris, or another coating?

Did you carve the wax yourself or did you buy premade patterns? The fish legs are very nicely done.

I've never worked with zinc before. How does it compare with aluminum, and silicon bronze?

I just recently bought a jewelry kiln and a centrifugal casting machine which should allow me to do very small and thin items (even leaves and flowers). I'll be trying it out this weekend with any luck.

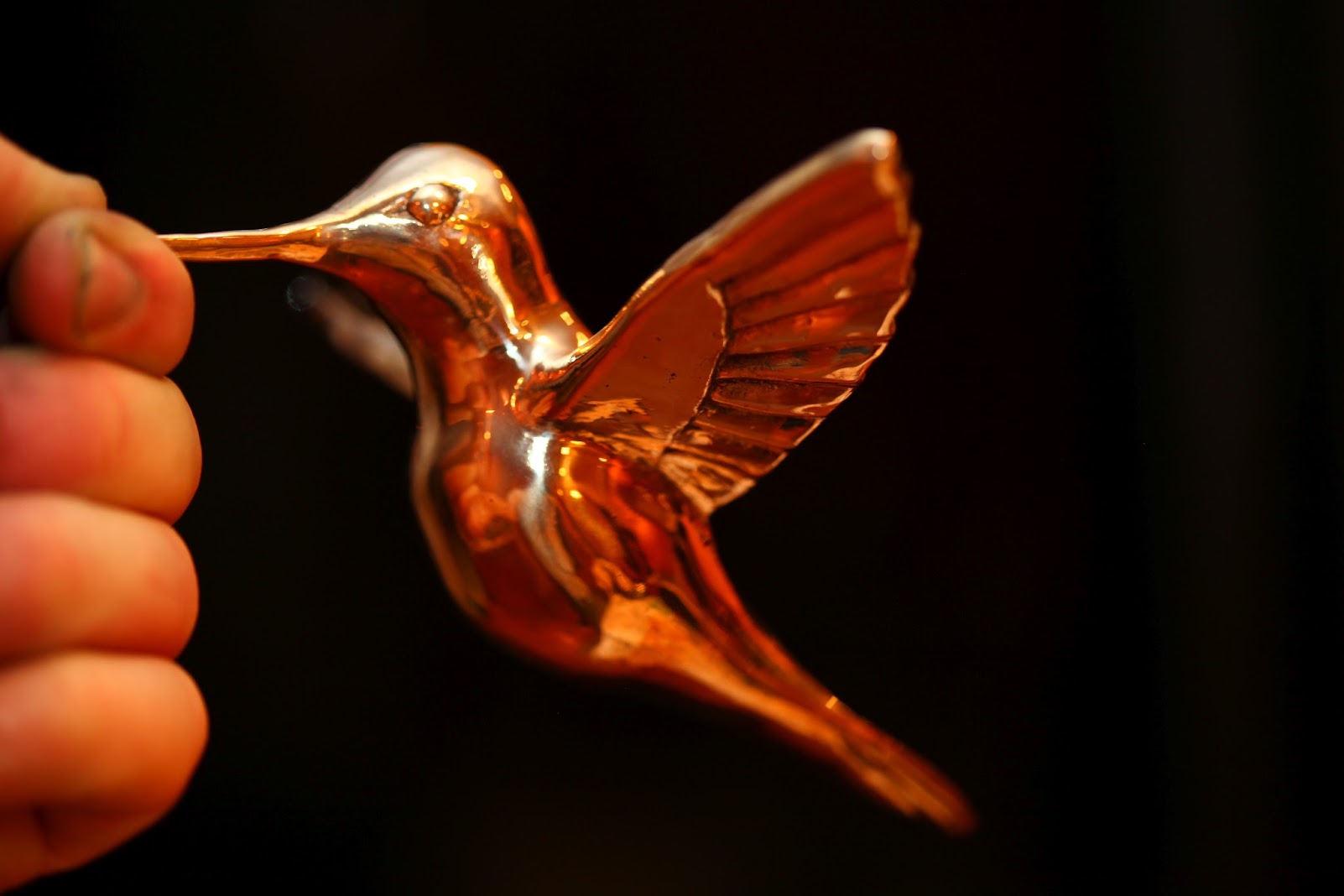

Here are some of my lost wax castings:

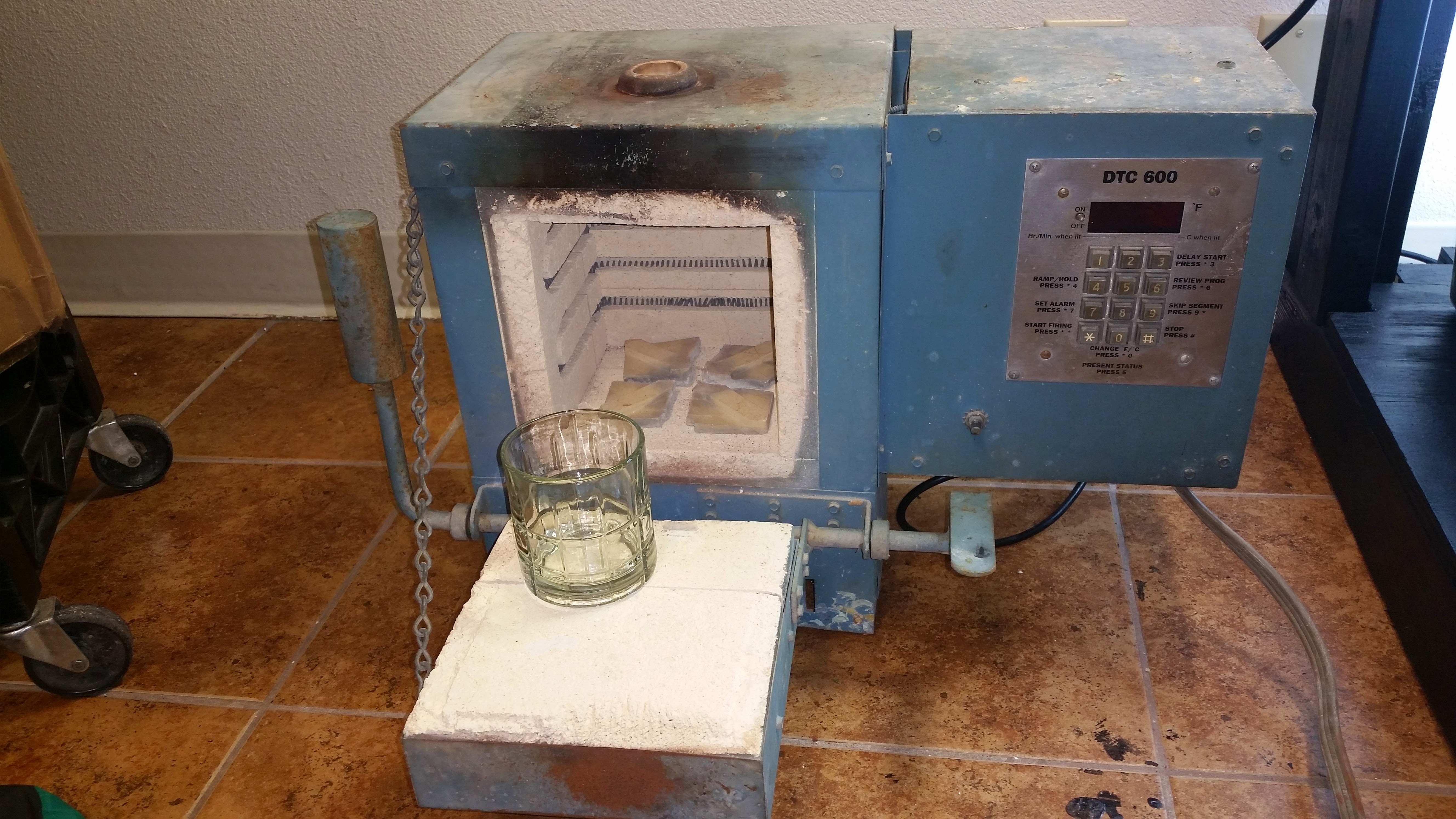

Here is a picture of one of my furnaces :
