Discussion Starter · #1 ·

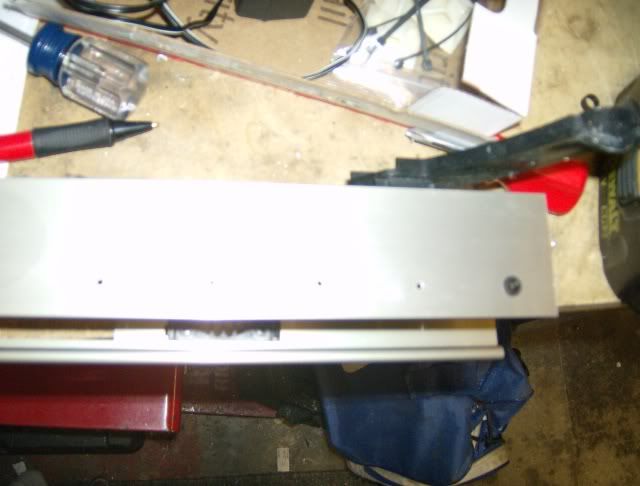

Ok, so I like moon lights. I wanted them on my tank but did not want the ugly wires that see with the cheap sets. So I retrofitted them in to my 30" coralife light. I took a lot of time but it was worth it, here are some pics of the work. The final photo is a little fuzzy.









·
Registered
Joined
·
534 Posts
Discussion Starter · #7 ·
Sorry no diagram. I just removed the ballasts and the switch assembly drilled the holes, inserted the lights and reassembled. I used the ebay diy moon light kit that took the guess work out of the wiring. It was also cheaper than buying the stuff at fry's. I used 20 5mm led's, what made big difference was ordering the 5mm led clips they don't come with the kit and are hard to work with out. The connection are easy plug the transformer in a make sure the led is in the right way and solder. The transformer knocks the voltage down to 5v not enough to even feel.
